Outdoor living has become one of the most desirable features for luxury homes in Jeddah, Saudi Arabia. With warm weather throughout most of the year, homeowners are transforming gardens, terraces, swimming pools, and rooftop spaces into elegant outdoor retreats. One of the most popular upgrades is a professionally designed Villa Pergola Installation in Jeddah, combining comfort, style, and long-term durability.

At Jawaher Taibah Umbrellas, we specialize in designing and installing Luxury Pergolas, Aluminum Pergolas, and fully customized Outdoor Living Solutions for villas, commercial properties, hotels, restaurants, and private residences across Jeddah.

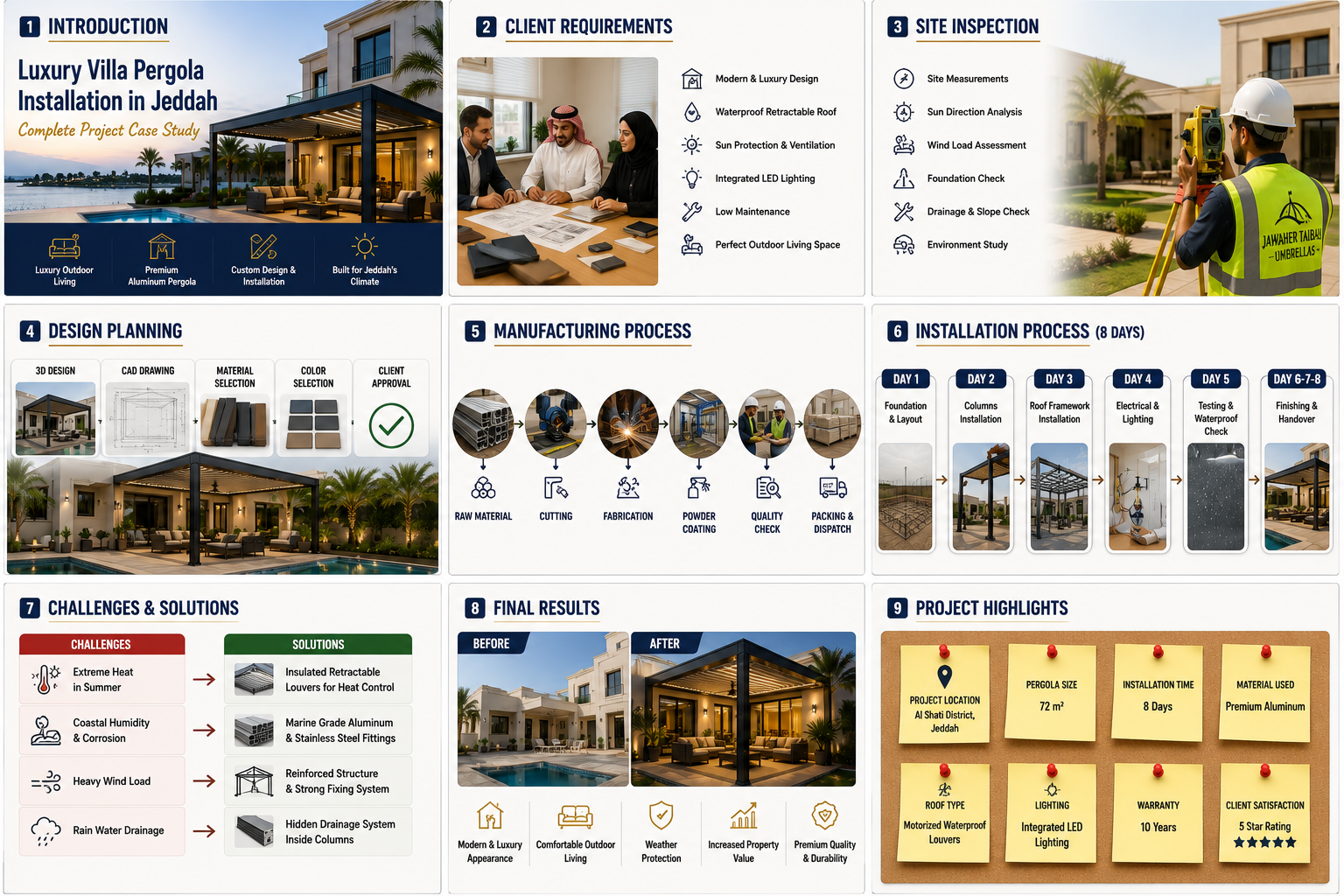

This case study showcases a realistic luxury villa project to demonstrate our end-to-end process—from consultation and design to manufacturing, installation, and final handover.

Project Overview

Project	Details
Client	Al Noor Elite Properties Co. (fictional case study)
Property Type	Luxury Private Villa
Location	Al Shati District, Jeddah
Project Area	72 m²
Pergola Type	Motorized Aluminum Pergola
Roof System	Waterproof Retractable Louvers
Lighting	Integrated LED Lighting
Installation Duration	8 Days
Warranty	10 Years
Contractor	Jawaher Taibah Umbrellas

About the Client

Al Noor Elite Properties Co. is a premium real estate investment company specializing in luxury villas across Jeddah. One of their clients wanted to transform an unused backyard into a sophisticated outdoor entertainment area suitable for family gatherings, evening dining, and relaxation.

The project required a structure that complemented the villa’s modern architecture while offering year-round protection from the intense Saudi sun and occasional rain.

Client Requirements

During the first consultation, our design team met with the property owner to understand their vision. Rather than choosing a standard pergola, the client requested a premium custom-built solution tailored specifically to the villa.

The Client Wanted

• A modern luxury pergola matching the villa’s architecture
• Durable aluminum construction suitable for Jeddah’s climate
• A waterproof retractable roof
• Remote-controlled louver system
• Hidden drainage channels
• Integrated LED lighting
• Ceiling fans for improved airflow
• Elegant powder-coated finish
• Low-maintenance materials
• Long-term corrosion resistance
• Outdoor dining area for 12 guests
• Space for lounge furniture
• Premium aesthetics that increase property value

Site Inspection

Before beginning the design process, our engineering team conducted a complete site inspection.

Inspection Checklist

✔ Property measurements

✔ Foundation condition

✔ Existing landscape

✔ Drainage slope

✔ Sunlight direction

✔ Wind exposure

✔ Underground utilities

✔ Existing electrical connections

✔ Water drainage system

✔ Accessibility for installation equipment

Because the villa was located close to the Red Sea coastline, corrosion resistance became one of the most important design considerations.

The engineers also observed that the afternoon sun created excessive heat in the outdoor seating area. This meant the pergola had to maximize shade while allowing natural ventilation.

Existing Site Conditions

The backyard originally included:

• Natural stone flooring
• Swimming pool
• Decorative palm trees
• Outdoor barbecue area
• Modern villa façade
• Large glass sliding doors

Although visually attractive, the area was almost unusable during daytime because temperatures regularly exceeded 40°C.

The client wanted to create a comfortable outdoor space that could be enjoyed throughout the year.

Engineering Assessment

Our structural engineers evaluated:

• Wind load calculations
• Roof span
• Column placement
• Foundation strength
• Rainwater flow
• Solar exposure
• Structural stability

Computer simulations confirmed that a heavy-duty aluminum pergola with reinforced steel anchor plates would provide maximum durability while maintaining an elegant appearance.

Design Planning

Following the site survey, our architects developed several concept designs.

Step 1 – 3D Visualization

A realistic 3D model allowed the client to see exactly how the pergola would look before manufacturing began.

The visualization included:

• Furniture placement
• Lighting effects
• Roof operation
• Landscaping integration
• Poolside appearance
• Day and night views

The client approved the design after minor adjustments to the roof dimensions and lighting layout.

Step 2 – Architectural Drawings

Detailed engineering drawings were prepared showing:

• Structural framework
• Foundation details
• Roof mechanism
• Electrical routing
• Hidden drainage system
• Lighting positions
• Ceiling fan locations

Every component was reviewed before production.

Step 3 – Color Selection

To complement the villa’s modern architecture, the client selected:

• Matte Charcoal Grey aluminum frame
• White waterproof louvers
• Warm white LED lighting
• Hidden black drainage channels
• Stainless steel accessories

This color combination created a contemporary appearance while blending naturally with the villa’s stone exterior.

Material Selection

Material quality directly affects the lifespan of any outdoor structure, especially in coastal environments like Jeddah.

Jawaher Taibah Umbrellas selected only premium-grade materials for this project.

Structural Frame

• Marine-grade powder-coated aluminum
• High-strength reinforced profiles
• Anti-corrosion treatment

Roof System

The roof consisted of motorized waterproof aluminum louvers capable of:

• Opening for ventilation
• Closing completely during rain
• Providing adjustable shade throughout the day

Fasteners

All bolts, screws, and brackets were manufactured from marine-grade stainless steel to prevent corrosion caused by humidity and sea air.

Drainage System

A concealed drainage system was integrated inside the pergola columns, allowing rainwater to flow through internal channels without affecting the exterior appearance.

Lighting

The client selected:

• Integrated LED strip lighting
• Recessed spotlights
• Smart remote control
• Energy-efficient fixtures
• Outdoor IP-rated electrical components

Manufacturing Process

Once the final design received approval, production began at the Jawaher Taibah Umbrellas manufacturing facility.

Every component was produced using precision engineering equipment to ensure perfect alignment during installation.

Manufacturing Steps

1. Aluminum Profile Cutting

High-precision CNC machines cut each aluminum section according to engineering specifications.

2. Welding & Fabrication

Experienced fabricators assembled the structural framework using advanced welding techniques to maximize strength and durability.

3. Surface Preparation

Each component underwent cleaning, sanding, and chemical treatment before coating.

4. Powder Coating

Premium weather-resistant powder coating was applied and oven-cured to provide superior protection against UV rays, heat, humidity, and corrosion.

5. Roof Assembly

The motorized louver system was preassembled and tested in the factory to ensure smooth operation.

6. Quality Control Inspection

Before delivery, every component passed a comprehensive inspection covering:

• Dimensional accuracy
• Surface finish
• Structural strength
• Motor operation
• Electrical safety
• Waterproof sealing
• Coating quality

Only after passing all inspections was the pergola approved for delivery to the project site.

Luxury Villa Pergola Installation in Jeddah: Installation Process, Challenges & Final Results

7. Installation Process

After completing manufacturing and factory quality inspections, our logistics team carefully transported all pergola components from our production facility to the luxury villa in Al Shati District, Jeddah. To protect the premium powder-coated aluminum and motorized roof components, every part was individually wrapped and secured before transportation.

A dedicated project manager coordinated with the villa owner to ensure minimal disruption to the household during installation.

Day 1 – Site Preparation & Layout Marking

The first day focused on preparing the installation area and confirming all engineering measurements.

Work Completed

• Final site measurements verified
• Pergola layout marked using laser equipment
• Existing flooring protected with safety coverings
• Foundation points marked
• Underground utility lines confirmed
• Installation materials organized

Before drilling, our engineers performed one final inspection to ensure the pergola would align perfectly with the villa’s architectural design.

At the end of Day 1, the client approved the final layout before structural work began.

Day 2 – Foundation & Structural Installation

A strong foundation is essential for ensuring the pergola performs reliably under high temperatures and coastal wind conditions.

Installation Activities

• Heavy-duty anchor bolts installed
• Reinforced steel base plates fixed
• Aluminum support columns erected
• Structural alignment checked using laser levels
• Temporary supports installed during assembly

Each column was securely anchored to maximize structural stability while maintaining a clean and elegant appearance.

Day 3 – Roof Framework Assembly

With the support structure complete, the installation team assembled the roof framework.

Completed Tasks

• Main roof beams installed
• Cross-support members secured
• Waterproof frame alignment verified
• Hidden drainage channels connected
• Structural load testing completed

Every connection point was torque-tested to ensure maximum safety and long-term performance.

Day 4 – Motorized Louver Installation

The highlight of the project was the installation of the advanced motorized aluminum louver roof.

Features Installed

• Waterproof rotating louvers
• Silent motor system
• Smart remote-control receiver
• Rain sensor integration
• Adjustable ventilation system
• Emergency manual override

The louvers were tested repeatedly to ensure smooth opening and closing without noise or vibration.

Day 5 – Electrical & Lighting Installation

After completing the roof system, our certified electricians installed all electrical components.

Installed Components

• Warm white LED strip lighting
• Recessed ceiling spotlights
• Hidden electrical wiring
• Outdoor weatherproof switches
• Smart remote-control system
• Ceiling fan connections

The concealed wiring preserved the pergola’s clean, modern appearance while ensuring long-term reliability.

Day 6 – Waterproof Testing & Quality Inspection

Before project handover, the pergola underwent comprehensive testing.

Inspection Checklist

✔ Waterproof performance

✔ Roof operation

✔ Drainage efficiency

✔ Motor performance

✔ Electrical safety

✔ Lighting functionality

✔ Structural stability

✔ Surface finish quality

✔ Weather resistance

✔ Final cleaning

The waterproof louver roof successfully handled simulated heavy rainfall, with all water flowing through the concealed drainage system without leaks.

Day 7 – Interior Styling & Final Adjustments

To help the client visualize the finished outdoor living space, we installed the planned furniture layout.

Outdoor Features

• Luxury outdoor sofa set
• Dining table for twelve guests
• Decorative planters
• Modern lighting accents
• Outdoor rug
• Premium seating arrangement

The completed pergola transformed the backyard into a luxury entertainment area suitable for family gatherings and evening relaxation.

Day 8 – Client Handover

On the final day, our project manager conducted a complete walkthrough with the client.

The client received:

• Operating manual
• Remote-control instructions
• Maintenance guide
• Warranty documentation
• Electrical certification
• Final quality checklist

After the final inspection, the project was officially handed over.

Challenges & Solutions

Every premium construction project presents unique challenges. This villa installation was no exception.

Challenge 1 – Extreme Summer Temperatures

Issue

Jeddah’s high temperatures made the backyard uncomfortable during the afternoon.

Solution

We installed insulated motorized aluminum louvers that allow adjustable ventilation while significantly reducing direct solar heat.

Challenge 2 – Coastal Humidity

Issue

The property’s proximity to the Red Sea increased the risk of corrosion.

Solution

Marine-grade powder-coated aluminum, stainless steel fasteners, and corrosion-resistant finishes were selected to ensure long-term durability.

Challenge 3 – Hidden Drainage Requirements

Issue

The client wanted a clean, modern appearance without visible gutters.

Solution

Our engineers designed an internal drainage system concealed inside the pergola columns, maintaining a sleek architectural finish.

Challenge 4 – Modern Architectural Integration

Issue

The pergola needed to complement the villa’s contemporary design.

Solution

A minimalist aluminum structure with charcoal grey framing, white louvers, and integrated LED lighting created a seamless extension of the home’s architecture.

Challenge 5 – Minimal Disruption

Issue

The villa remained occupied during construction.

Solution

The project was carefully scheduled, and protective coverings were used throughout the installation to keep the site clean and safe.

Final Results

After eight days of meticulous planning, manufacturing, and installation, the transformation was remarkable.

The once-unused backyard became a luxurious outdoor living area that blended elegance, comfort, and functionality.

The completed pergola featured:

• Motorized waterproof roof
• Premium aluminum construction
• Hidden drainage
• Integrated LED lighting
• Smart remote control
• Modern architectural design
• Comfortable outdoor dining space
• Stylish lounge area

The pergola quickly became the family’s favorite place to enjoy breakfast, evening gatherings, and weekend entertainment.

Before vs. After

Before Installation	After Installation
Open backyard exposed to sun	Elegant shaded outdoor living area
High daytime temperatures	Comfortable year-round environment
Limited usability	Outdoor dining and entertainment space
No weather protection	Waterproof motorized roof
Minimal visual appeal	Luxury architectural centerpiece

Client Feedback

“Jawaher Taibah Umbrellas exceeded every expectation. The professionalism of the team, attention to detail, and quality of the pergola were outstanding. The installation was completed on schedule, and the finished outdoor space has completely transformed our villa. We now spend far more time outdoors with family and friends, and the pergola has become one of the best investments we’ve made for our home.”

— Project Manager, Al Noor Elite Properties Co. (fictional case study)

Benefits for the Client

The completed pergola delivered significant long-term value.

Lifestyle Benefits

✔ Comfortable outdoor living throughout the year

✔ Perfect entertainment space

✔ Family gathering area

✔ Improved privacy

✔ Better airflow

Financial Benefits

✔ Increased property value

✔ Lower long-term maintenance costs

✔ Durable investment

✔ Energy savings through additional shade

Design Benefits

✔ Luxury appearance

✔ Seamless integration with the villa

✔ Modern architectural enhancement

✔ Premium outdoor experience

Maintenance Tips

Maintaining a luxury aluminum pergola is simple and helps ensure decades of reliable performance.

Monthly

• Clean aluminum surfaces with mild soap and water.
• Remove leaves or debris from drainage channels.
• Check the remote-control batteries.

Every 6 Months

• Inspect moving roof components.
• Tighten accessible fasteners if required.
• Test the drainage system.

Annually

• Schedule a professional inspection.
• Service the motorized louver mechanism.
• Inspect electrical wiring and LED lighting.
• Verify waterproof seals and drainage performance.

Professional Project Completion

Following final testing, the pergola met all project specifications and quality standards.

Project Summary

Item	Status
Manufacturing	✅ Completed
Installation	✅ Completed
Electrical Works	✅ Completed
Waterproof Testing	✅ Passed
Structural Inspection	✅ Passed
Client Approval	✅ Approved
Warranty Issued	✅ 10 Years
Project Handover	✅ Successfully Completed

The project was delivered on schedule, within the planned timeline, and to the client’s complete satisfaction—demonstrating Jawaher Taibah Umbrellas’ commitment to delivering premium Villa Pergola Installation in Jeddah, Luxury Pergolas, Aluminum Pergolas, and customized Outdoor Living Solutions built for Saudi Arabia’s climate.

📍 Serving: Jeddah & All Saudi Arabia

📞 Call / WhatsApp: +966 50 979 3971

📧 Email: jawaertaiba@gmail.com

🌐 Website:
https://jawahertaibahumbrellas.com/

📍 Google Business Profile:
https://share.google/Wdqy7FzxkTgWK1gPu

📝 Visit Our Blog:
https://jawahertaibahumbrellas.com/blog/
